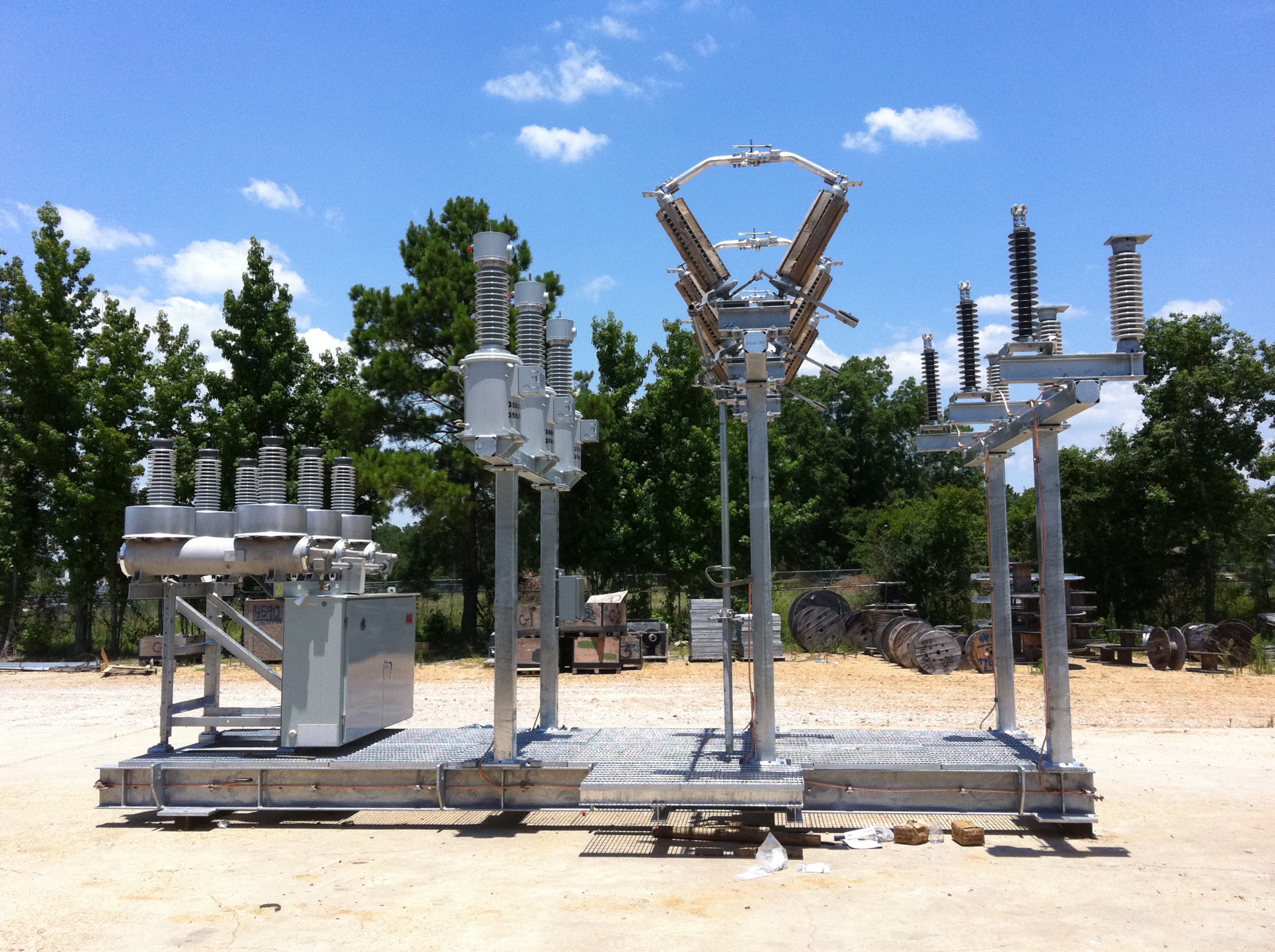

High Voltage Distribution

High Voltage Distribution

  • Substation / Switchyard Packages including the following scope:
    • Steel Structures
    • Aerial Bus
    • Insulators
    • Connectors
    • Air Switches
    • CT’s
    • PT’s
    • Surge Arresters
  • SF6 Dead Tank Circuit Breakers
  • Control Houses with Protection
  • Control including Relaying and Metering
  • SCADA

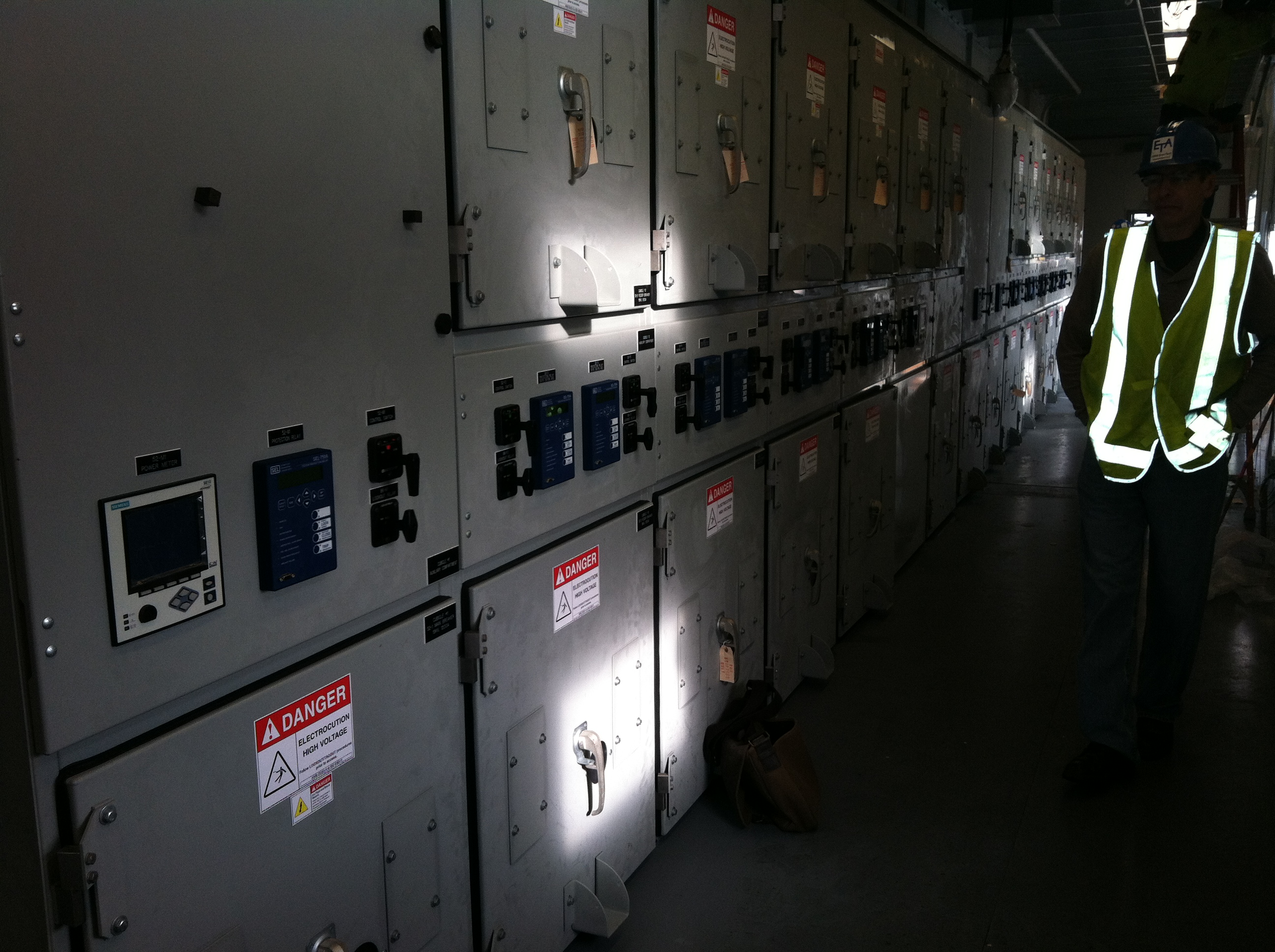

Medium Voltage Distribution

Medium Voltage Distribution

  • Metal Enclosed Load Interrupter Switchgear
  • Low Profile Pad Mounted 15 & 25KV Switch & Fuse
  • Custom Metal-Clad Drawout Circuit Breaker Switchgear
  • Utility Primary Metering Cubicles
  • Arc Resistant Switchgear
  • Paralleling Switchgear
  • Catenary Switchgear
  • Generator Breakers
  • Shore Power & Mining Skidded Substations
  • MV Segregated & Non-Segregated Busway
  • MV Disconnectable Joints & Separable Elbows

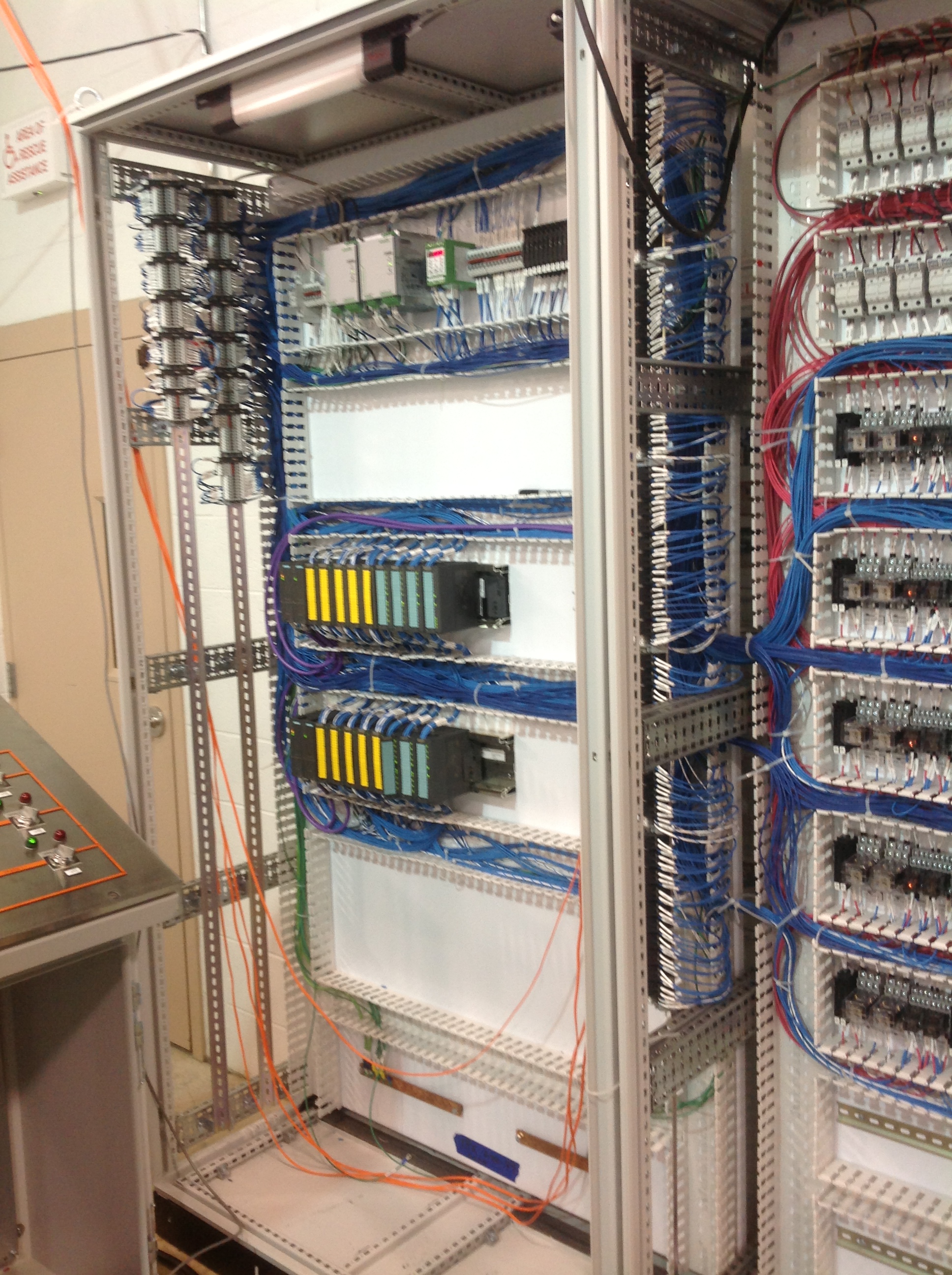

Low Voltage Distribution

Low Voltage Distribution

  • UL 1558 & UL 891 Drawout Circuit Breaker Switchgear & Switchboards,
  • Unit Substation Secondary Switchgear
  • Generator Connection Cabinets
  • LV Segregated & Non-Segregated Busway
  • Network Protectors & Accessories
  • Network SCADA Equipment & Integration
  • Underground Secondary Cable Connectors
  • Power Factor Correction & Harmonic Filtering

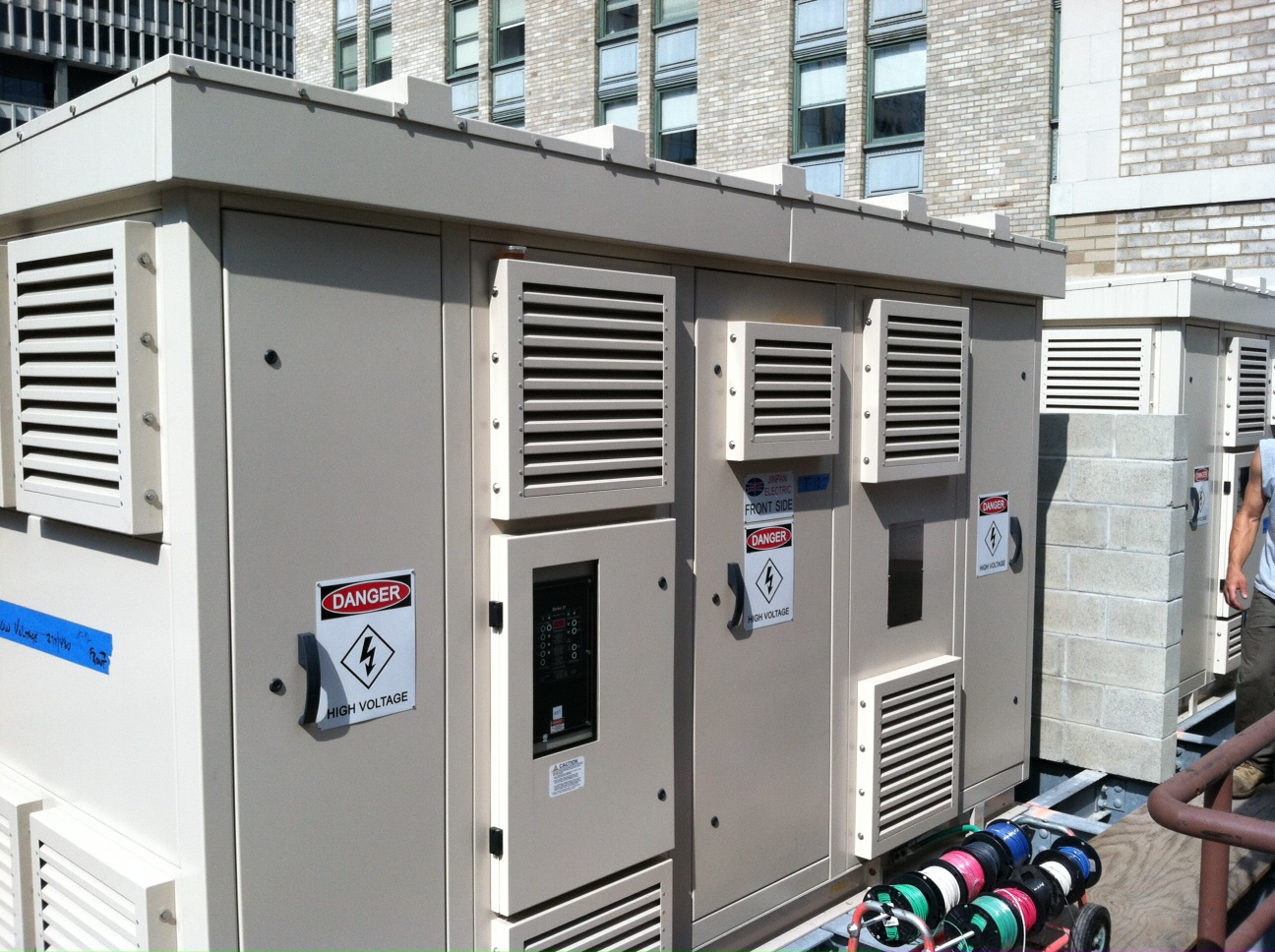

Transformers

Transformers

  • Medium and Large Power Transformers (5MVA to 650MVA/750kV),
  • UL Listed Cast Coil Transformers
  • Liquid Filled Pole & Pad Mounted Transformers
  • Dry Type Substation/Drive Isolation Transformers
  • General Purpose Transformers
  • Ultra Efficient & Harmonic Mitigating Transformers
  • Remanufactured/Refurbished Transformers (Rental/Sale)
  • Transformer Application/Design/Core-coil Replacements/Retrofit Services
Services

Services

  • Power Systems Studies including Short Circuit
  • Coordination, Arc Flash & Harmonic Analysis
  • Retrofit/Remanufacture/Match & Lineup of Existing Switchgear, Circuit Breakers & Starters
  • Start-up & Testing of Equipment Packages
  • NYC Advisory Board Submissions
  • Seismic Certification
  • Snubber Circuit Calculations
  • Equipment Composite Drawings

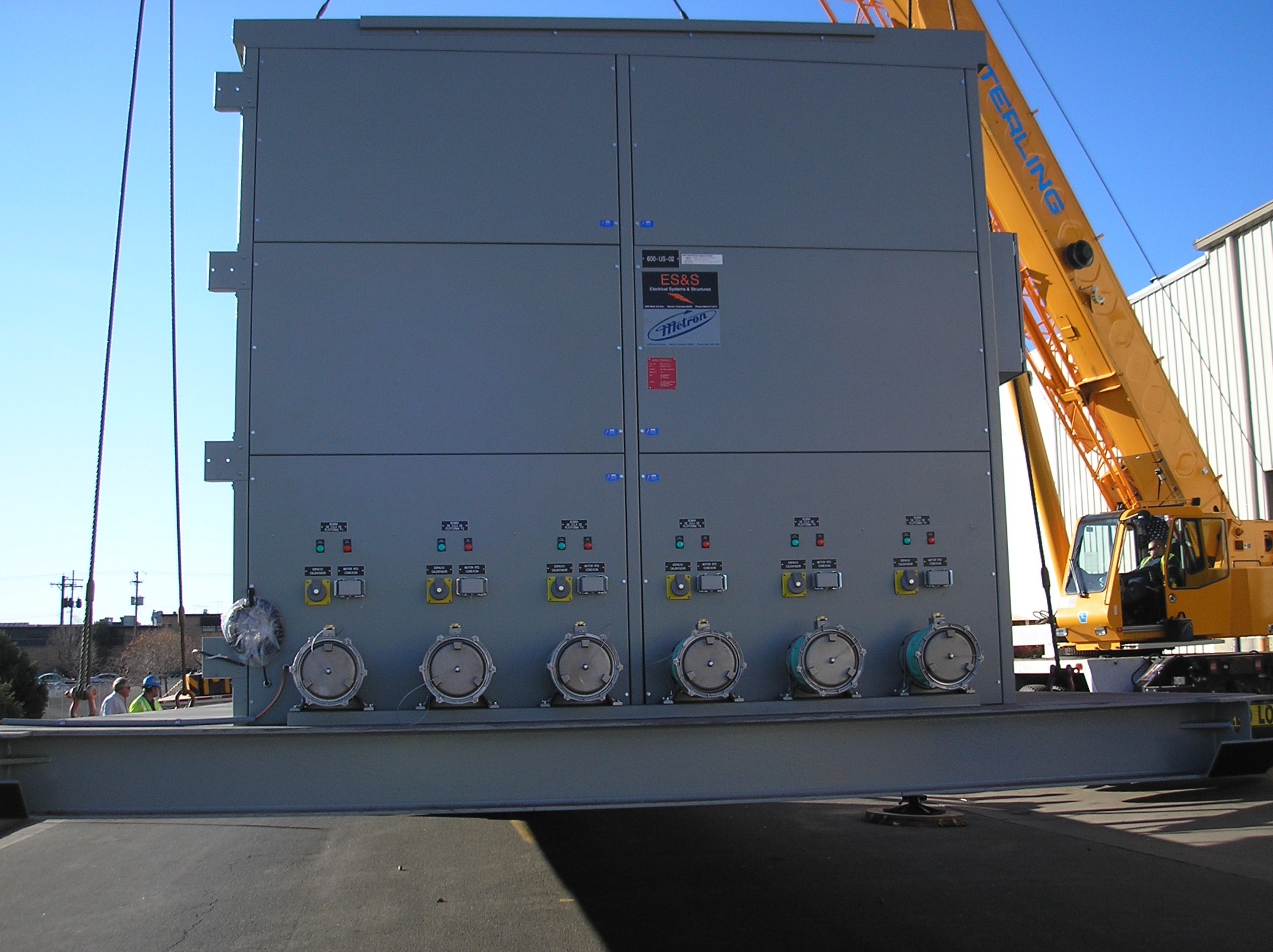

Miscellaneous

Miscellaneous

  • Utility and Customer Metering Cabinets
  • Power Control Centers/Modular Switchgear Enclosures
  • Neutral Grounding Resistors
  • Unitized Substations with Composite Drawings
  • Solid State Starters
  • LV & MV VFD’s
  • Motor Starters
  • AC/DC Power Supply & Battery Systems
  • Battery Chargers, Custom & Complex UPS Designs
  • New/Refurbished Circuit Breakers/Switches/Bus Plugs/MCC Buckets/Strap Kits
